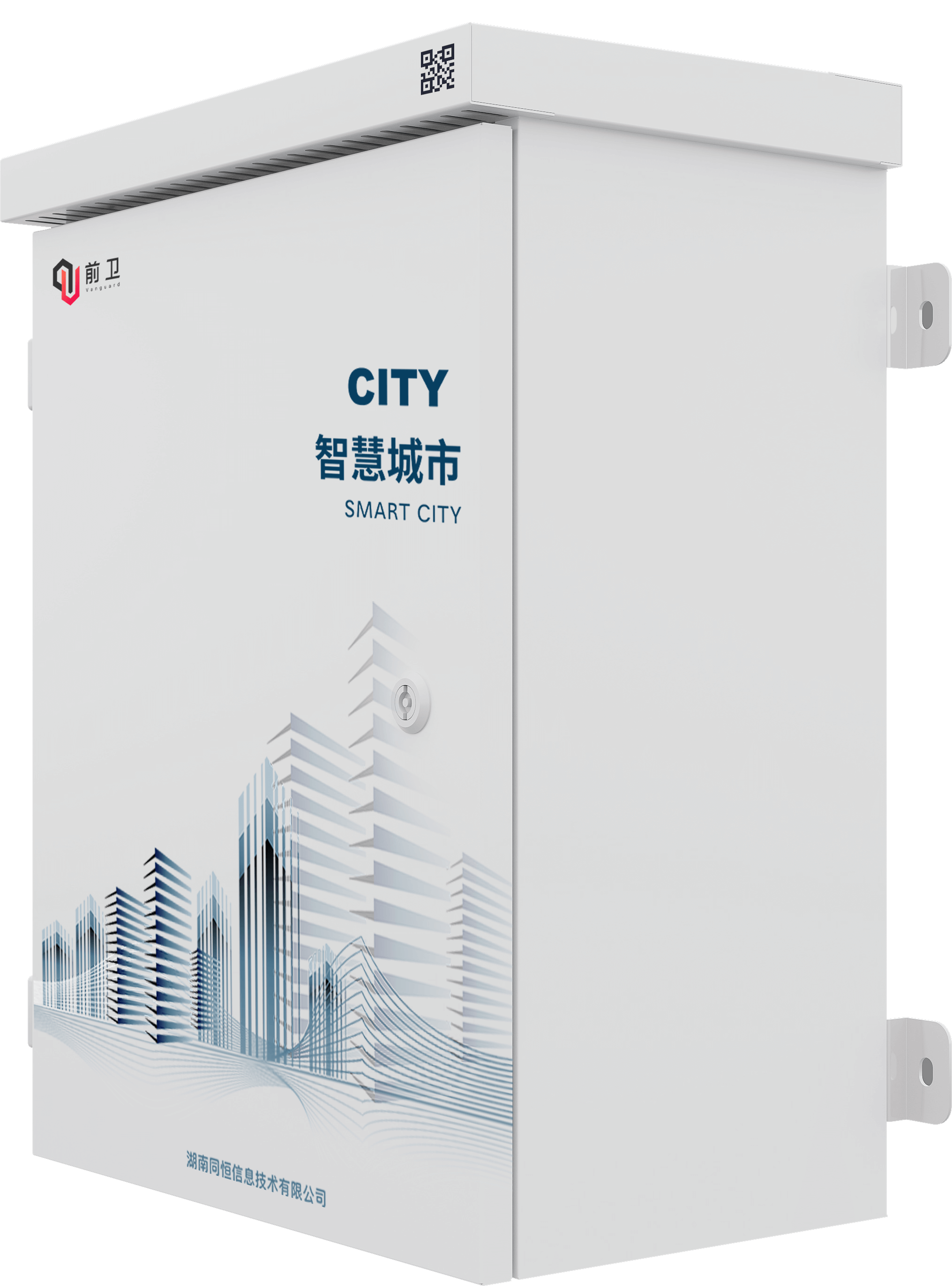

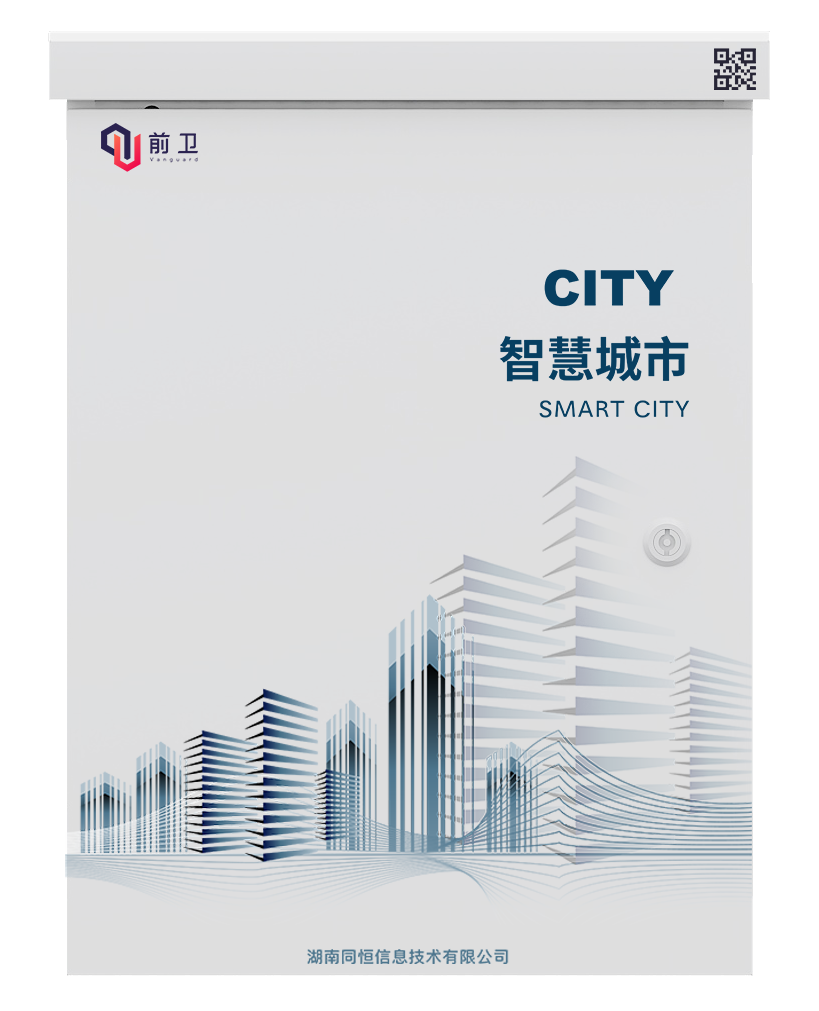

Intelligent Device Enclosure —— "Concise" Series

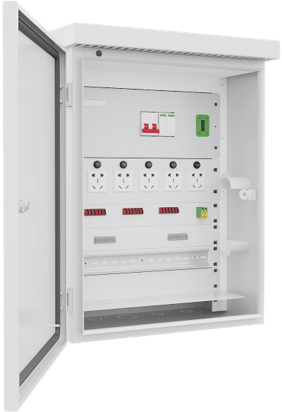

The "Concise" Series intelligent device enclosure is designed for outdoor use, featuring rainproof, dustproof, corrosion-resistant, and rust-resistant properties, along with intelligent control and high integration. The unit has a neat and aesthetic design, incorporating components such as a power surge protector, fan, fiber splicing tray, cable fixing base, and enclosure door lock. It is suitable for video surveillance applications including Sharp Eyes Project, Safe City, and Intelligent Transportation Systems.
Product features
Functional characteristics
Precise Fault Localization for Rapid Troubleshooting
Accurately distinguishes between mains power, network, and equipment failures, with detailed fault analysis. Supports detection of various anomalies including mains power abnormalities, overvoltage, fiber faults, temperature/humidity deviations, unauthorized door opening, and enclosure vibration.
Front-End Intelligent Management & Back-End Centralized Processing
Utilizes a multi-tier detection mechanism combining power supply monitoring, network diagnostics, and channel inspection at the front end, with back-end platform verification to ensure alarm accuracy. The back-end employs advanced algorithms for multi-dimensional data analysis to enhance alarm reliability.
Integrated Design with High Space Utilization

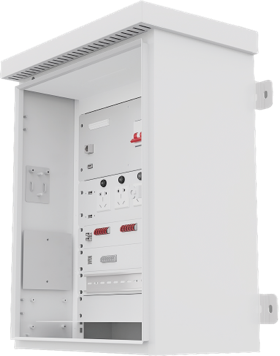

The integrated design minimizes internal space occupation, reserving over two-thirds of the area for customer equipment deployment. It offers high space utilization and exceptional practicality. The rational internal layout facilitates convenient installation and debugging, while separate routing for high-power and low-power circuits maintains a clean and aesthetic exterior.
Industrial-Grade Security and High-Reliability Design
Designed to operate within industrial temperature ranges and featuring professional outdoor lightning protection, the system includes power supply safeguards against short circuits, overloads, overvoltage, undervoltage, and leakage. Zero-interruption power supply technology ensures continuous power delivery to video surveillance cameras even during system reboots, maintaining uninterrupted video services throughout the restart process.
Product description
Efficient Heat Dissipation & Temperature Control
Turbocharged fan with horizontal airflow, utilizing aerodynamic and thermodynamic principles to optimize cooling performance.
Independent Modular Architecture

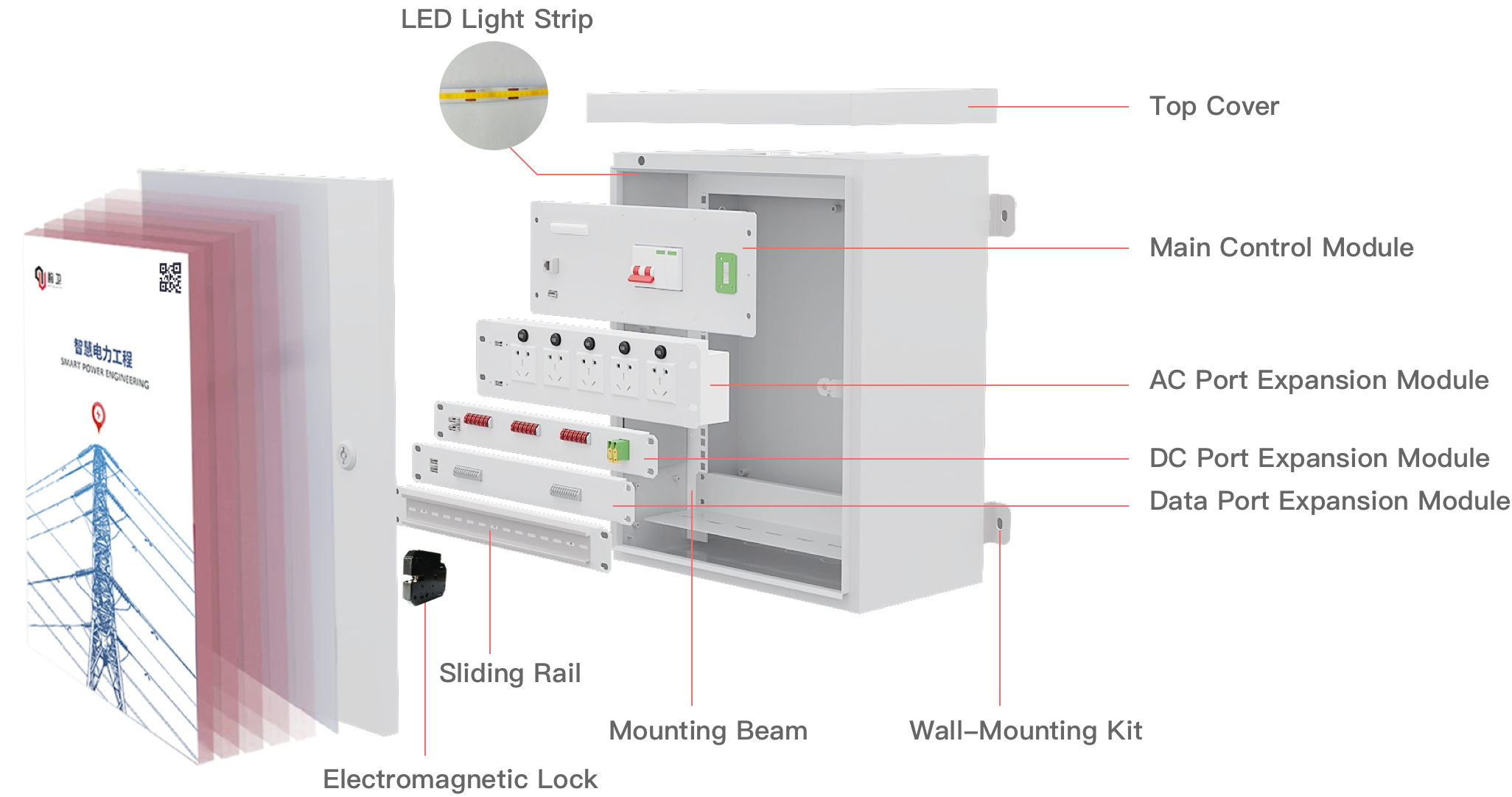

Expansion modules are independently designed and customizable to meet personalized needs. Each expansion module has clearly defined functions and interfaces, and modules operate independently for easier disassembly and maintenance.
Waterproof, Snowproof, Lightning-Resistant, and Durable
Designed to withstand harsh outdoor conditions including sandstorms, thunderstorms, and salt spray. Built-in foam rubber waterproof gasket provides excellent sealing, corrosion resistance, and aging resilience.
Professional Industrial Coating Design
Customized designs tailored to customer r equirements, application scenarios, value propositions, and functional needs.
Adaptable to Various Installation Methods

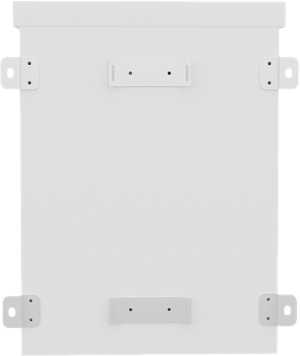

Mature installation solutions ensure robust and secure mounting. Supports wall-mounting, pole-mounting, and ground installation. The enclosure offers a load-bearing capacity of 1000 kg.
Independent Modular Architecture
Expansion modules are independently designed and customizable to meet personalized needs. Each expansion module has clearly defined functions and interfaces, and modules operate independently for easier disassembly and maintenance.
Product parameters
| "Concise" Series | ||||
|---|---|---|---|---|
| Model | THCB-C | Brand | Defense · Vanguard | |
| Opening Method | Left-Hinged Door | Material | SGCC (Hot-Dip Galvanized Steel) | |
| Protection Rating | IP55 | Color |
|
|
| Power Input | AC220V | Cable Entry | Bottom Entry | |
| Operating Temperature | Ambient temperature: -30℃～+65℃ | Air Duct Type | Top Air Duct | |
| Operating Humidity | Relative Humidity: ≤ 95%, Atmospheric Pressure: 70 ~ 106Kpa, Storage Temperature: -45℃～+55℃ | |||
| Expansion Ports | Supports 1/2/4/6/8 routing ports, 2/4/6/8 switching ports, controllable output ports including DC5V, DC9V,DC12V, DC36V, and AC220V, and is compatible with surge protection modules and communication modules. | |||

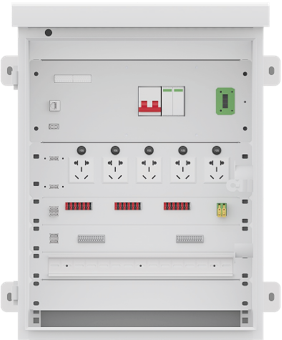

| Standard Configuration (Model A) | Modules | THMC-XXLET1-1202: Main Control Module (LTE Cat1 Communication)；THCE-DC012-03A-03S: 1× DC12V Input; 3× DC12V/3A Output Module； THCE-AC220-05A-02S: 2× AC220V/5A Output Module； | ||
| Accessories | Mechanical Lock, 4G Puck Antenna, Cooling Fan | |||
| Features |
1. Material: The enclosure is constructed from high-quality 1.0mm thick cold-rolled steel plate with spray-coated surface finish, providing waterproof, dustproof, and corrosion-resistant properties. 2. Configuration: Includes a 2P 32A isolation switch and a 40KA power surge protector. 3. Features: ◇Mains power failure detection, temperature-controlled fan, remote control, network transmission monitoring, and internal cabinet temperature monitoring. Real-time interaction with monitoring centers via IoT or metropolitan area networks to proactively report issues such as network interruption, equipment damage, mains power failure, and excessive internal temperature. ◇Supports 2G/4G and other networks for IoT data transmission, with modes including wireless, wired, automatic wired/wireless switching, and wireless backup. ◇Intelligent early warning function: Video recording integrity check, optical fiber link fault detection, server abnormality detection, local hardware fault detection, and camera failure detection, etc. ◇Electrical health monitoring: Input voltage, output current, and load power monitoring with customizable thresholds on the platform; alerts for voltage, current, and power anomalies. ◇Temperature and humidity monitoring: Real-time internal temperature and humidity tracking with user-defined thresholds via the client interface; alerts for exceeding/falling below set values via the client interface, indicating excessively high or low temperature/humidity conditions. ◇Power outage monitoring: Built-in power monitoring module distinguishes between regional power failures (e.g., mains outage) and internal power failures (e.g., circuit breaker trip) without requiring backup power; alerts are uploaded to the client platform with dedicated outage status icons. ◇Network disconnection monitoring: Alerts will be shown on the platform when network connectivity is lost within the enclosure. ◇Remote control: Remote activation, deactivation, and reboot of load power supply to resolve front-end device freezes; remote activation/deactivation of voice alarms. ◇Uninterrupted load power supply: Continuous power delivery to the internal circuits even if the intelligent operation and maintenance terminal itself fails, provided that the external power supply is functioning normally, ensuring that all internally powered devices maintain uninterrupted operation. ◇Remote upgrade: Supports remoter system updates via the client platform. ◇APP integration: Bi-directional data synchronization between mobile app and client platform. ◇Includes 3-year warranty and IoT communication service fees. |
|||
| Model A | Model B | ||
|---|---|---|---|
| External Dimensions (W×H×D) | 400 × 550 × 250 | External Dimensions (W×H×D) | 350 × 480 × 170 |
| Internal Dimensions (W×H×D) | 398 × 487 × 229 | Internal Dimensions (W×H×D) | 328 × 408 × 153 |
| Weight (kg) | 16KG | Weight (kg) | 15KG |
The above parameters are for reference only. Parameters for Model B are subject to the actual product. (Both Model A and Model B can be customized according to customer requirements)
